MARES - Atlas ADJ 62X TBP Regulator Set

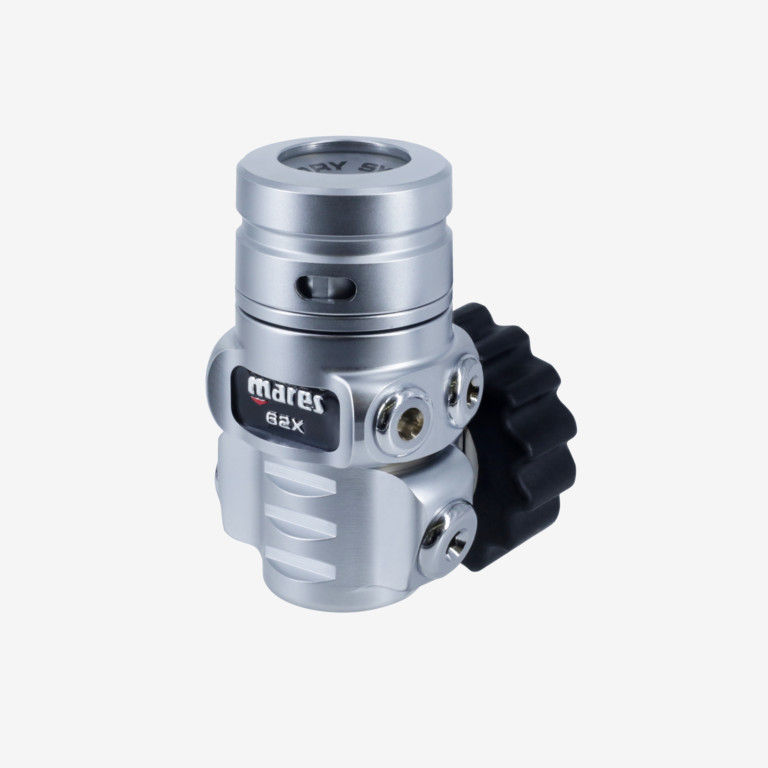

62X First Stage

The 62X TBP first stage is the first from Mares to be equipped with a dual piston and anti-freeze kit. The 62X first stage is also equipped with AST (Auto Sealing Technology), which protects against water entering the first stage, and uses a DFC (Dynamic Flow Control) system which ensures high, constant airflow.

Main features:

• A TBP (Twin Balanced Piston) system for improved performance during cold water dives
• A DFC LP port for high air flow at any depth
• AST technology to prevent water entry
• Pre-oriented LP and HP ports
• A compact diaphragm first stage
• A pearl chrome finish

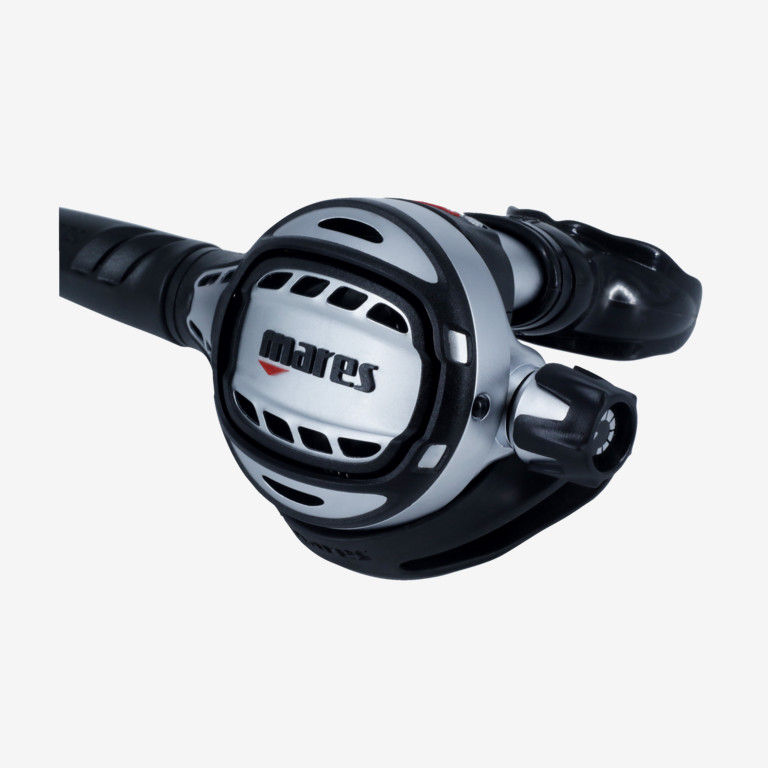

Atlas Second Stage

The Atlas second stage features a PAD (Pneumatically Assisted Design) system in combination with a VAD (Vortex Assisted Design) system patented by Mares. This synergy allows for high airflow, offering smooth, comfortable breathing at all depths and in extreme temperatures. With no moving parts inside the bypass, the potential formation of ice crystals when diving in cold water is not a problem.

The Atlas second stage is equipped with a large pivoting purge button and a knob for easy adjustment of breathing comfort, even when wearing gloves. The Atlas regulator uses a Superflex low-pressure hose which, thanks to its light weight and flexibility, guarantees high comfort during use.

Main features:

• All metal technology
• A VAD system for natural breathing at any depth
• Adjustable breathing comfort to meet the diver's needs
• PAD (Pneumatically Assisted Design): The second stage valve is designed and manufactured for pneumatic operation, minimising the spring load and inhalation effort
• A large pivoting exhaust button which is easy to use, even with thick gloves
• High airflow
• A Superflex hose

Material: All metal technology

Finish: Pearl chrome

First stage: Balanced diaphragm

First stage weight (INT): 782 g / 27.6 oz

First stage weight (DIN): 573 g / 20.2 oz

Second stage weight: 313 g / 11 oz

Total weight (INT): 1226 g / 43.2 oz

Total weight (DIN): 1017 g / 35.9 oz

High pressure ports: 2 HP 7/16" UNF ports

Low pressure ports: 4 LP 3/8" UNF ports

Hose type: Superflex hose

Hose length: 75cm

DFC - Dynamic Flow Control: Minimises intermediate pressure drop during inhalation thus maximising gas delivery, especially under extreme conditions.

VAD - Vortex Assisted Design: The air bypass tube conveys air to the mouthpiece creating a swirling vortex with a low pressure area in the centre that keeps the diaphragm down during inhalation, for very sensitive and easy breathing at all depths.

All Metal Technology: Outstanding mechanical resistance and high thermal conductivity make our metal 2nd stages extremely long lasting and ideal for cold water dives. The high thermal conductivity of metal reduces the dry mouth feeling during the dive.

Superflex Hose: Extreme light weight and exceptional softness guarantee the maximum freedom of movement.
